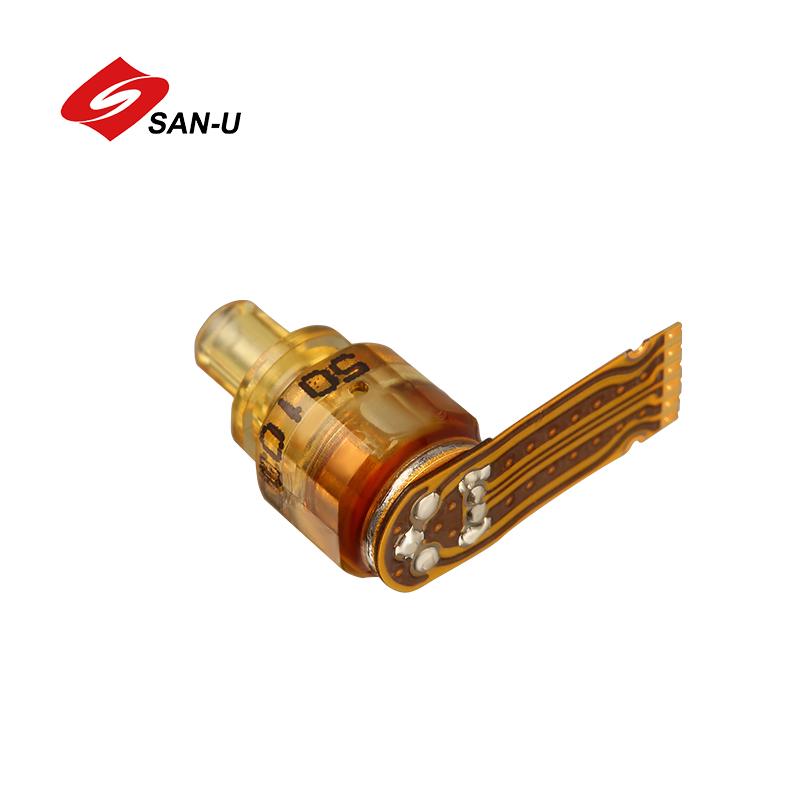

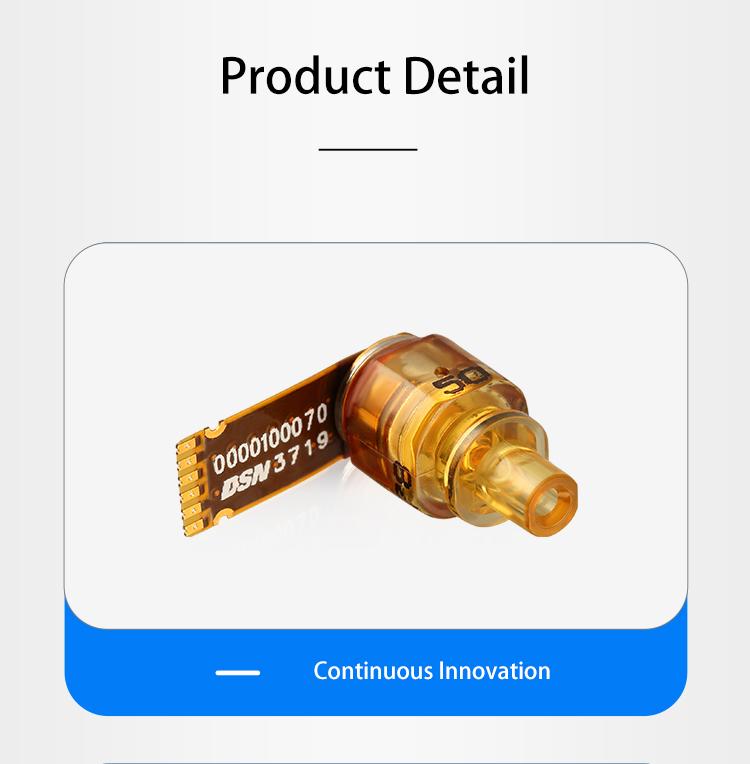

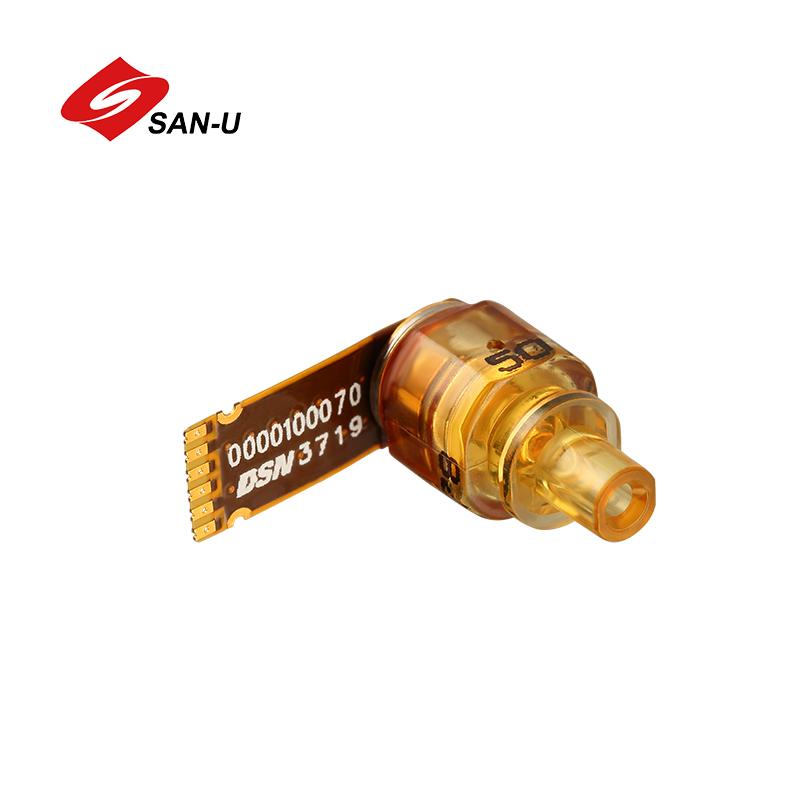

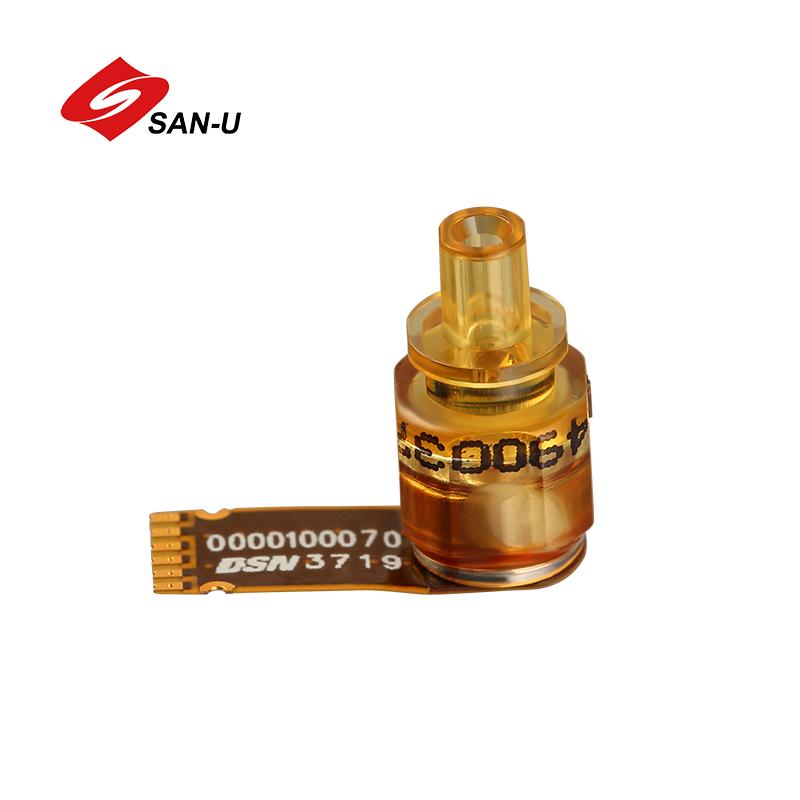

TOSA-LC 25Gbps 850nm with Flex
Features:
● Data rates up to 25 Gbps.
● 850nm multimode emission.
● 0℃ to +70℃ operation.
● Differentially driven.
● Low threshold and operation current.
● High reliability.
● Integrated monitor photodiode (MPD).
● LC plastic barrel, with flexible circuit attached.
Applications:
● High speed Data Communication.
Absolute Maximum Ratings
|
Parameter
|
Symbol
|
Min
|
Max.
|
Unit
|
|
LD Reverse Voltage
|
Vr(LD)
|
--
|
5
|
V
|
|
LD Forward Current
|
If (LD)
|
--
|
12
|
mA
|
|
MPD Forward Current
|
If(MPD)
|
--
|
10
|
mA
|
|
MPD Reverse Voltage
|
Vr(MPD)
|
--
|
10
|
V
|
|
Operating Temperature
|
Top
|
0
|
70
|
℃
|
|
Storage Temperature
|
Tstg
|
-40
|
85
|
℃
|
|
Lead Solder Temperature
|
--
|
--
|
260
|
℃
|
|
Lead Soldering Time
|
--
|
--
|
10
|
s
|
Specifications (T=25°C, unless otherwise noted)
|
Parameter
|
Symbol
|
Test Condition
|
Min
|
Typ
|
Max
|
Unit
|
|
Threshold Current
|
Ith
|
--
|
--
|
0.7
|
0.9
|
mA
|
|
Forward Voltage
|
Vf
|
Iop=6.5mA
|
--
|
2.1
|
--
|
V
|
|
Series Resistance
|
R
|
Iop=6.5mA
|
--
|
100
|
--
|
?
|
|
Monitor Current(MPD)
|
Im
|
Iop=6.5mA
|
100
|
--
|
800
|
uA
|
|
Dark Current(MPD)
|
Id
|
Vr=3.3V
|
--
|
--
|
20
|
nA
|
|
Bandwidth
|
BW
|
Iop=6.5mA,-3dB
|
13
|
--
|
--
|
GHz
|
|
Optical Output Power
|
Po
|
Iop=6.5mA,
50/125 µm MMF
|
0.63
|
0.81
|
1.00
|
mW
|
|
Slope efficiency
|
SE
|
0.109
|
0.141
|
0.172
|
mW/mA
|
|
Central Wavelength
|
λc
|
Iop=6.5mA
|
840
|
850
|
860
|
nm
|
|
Spectral Width
|
Δλ
|
Iop=6.5mA,RMS
|
--
|
--
|
0.8
|
nm
|
